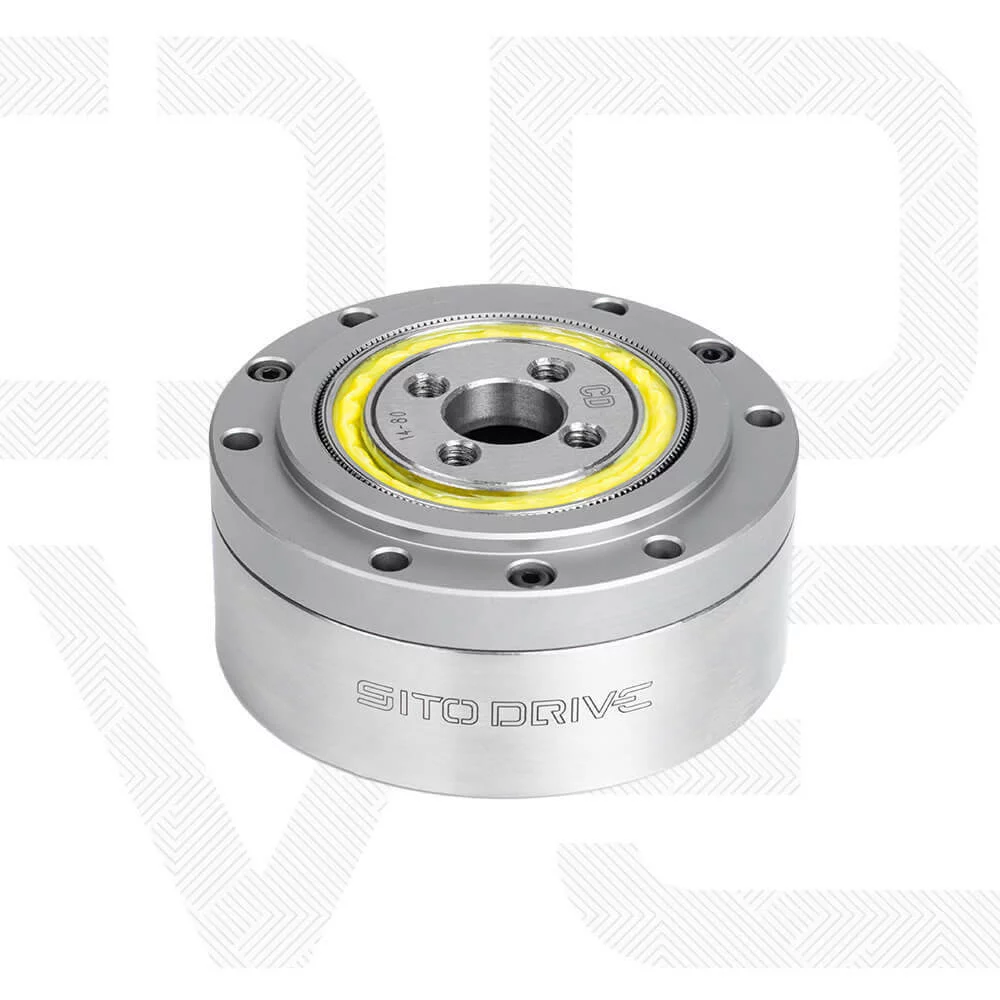

Family SitoDrive CD-14 55mm reducer Harmonic Drive Reducer Zero Backlash Gearbox for Robotics, CNC & Automation Nema 23 57mm CSD-14-100-2UH

SitoDrive CD-14 55mm reducer Harmonic Drive Reducer Zero Backlash Gearbox for Robotics, CNC & Automation Nema 23 57mm CSD-14-100-2UH

10% Cashback；Import charges included

Amount:

$0 $0

Speed Ratio

30

50

80

100

Add to Cart

Buy Now

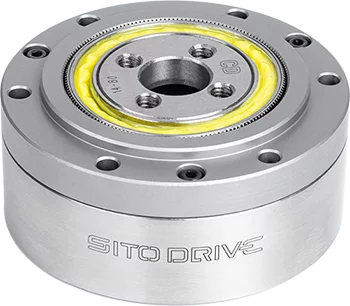

CD-14

CD系列谐波减速器

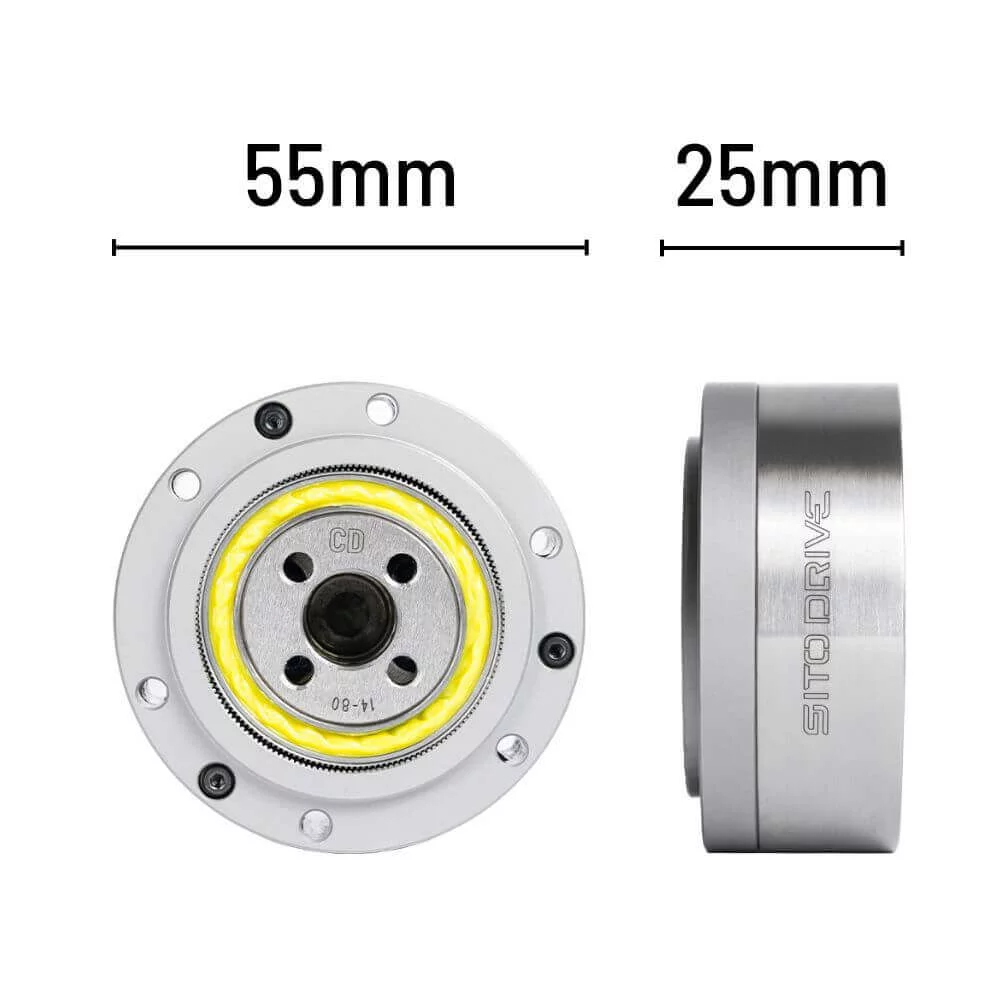

直径 : 55 mm

厚度 : 25 mm

重量 : ≤ 0.35 kg

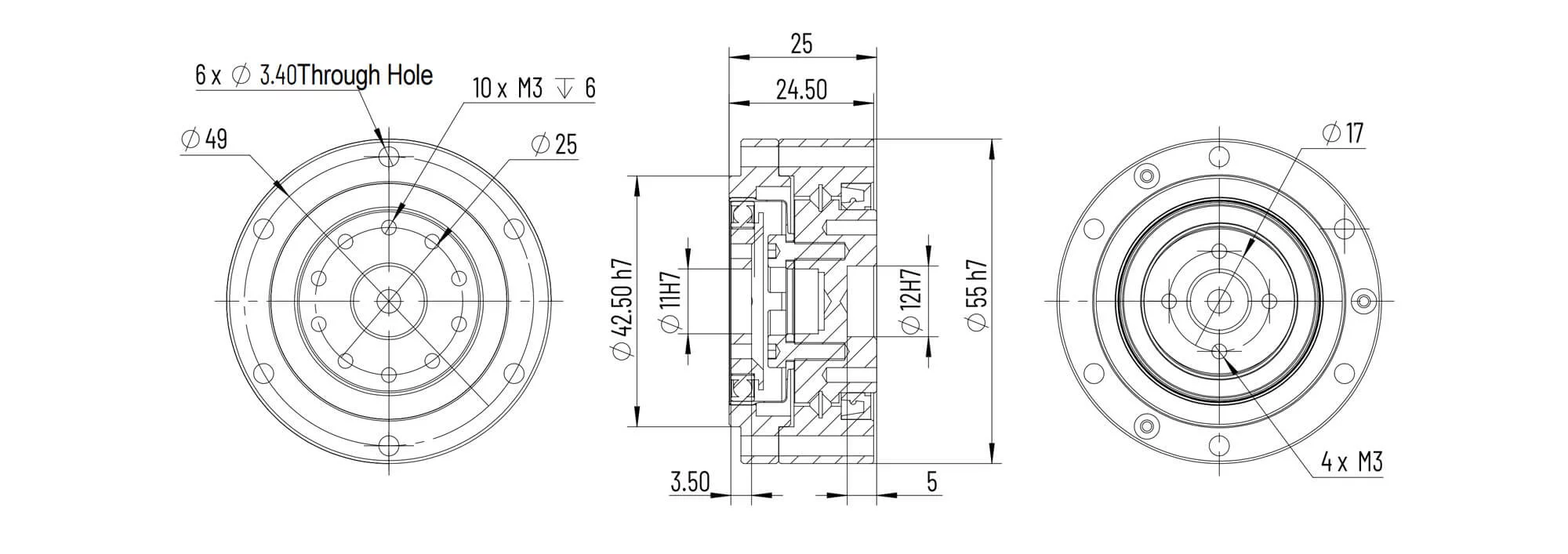

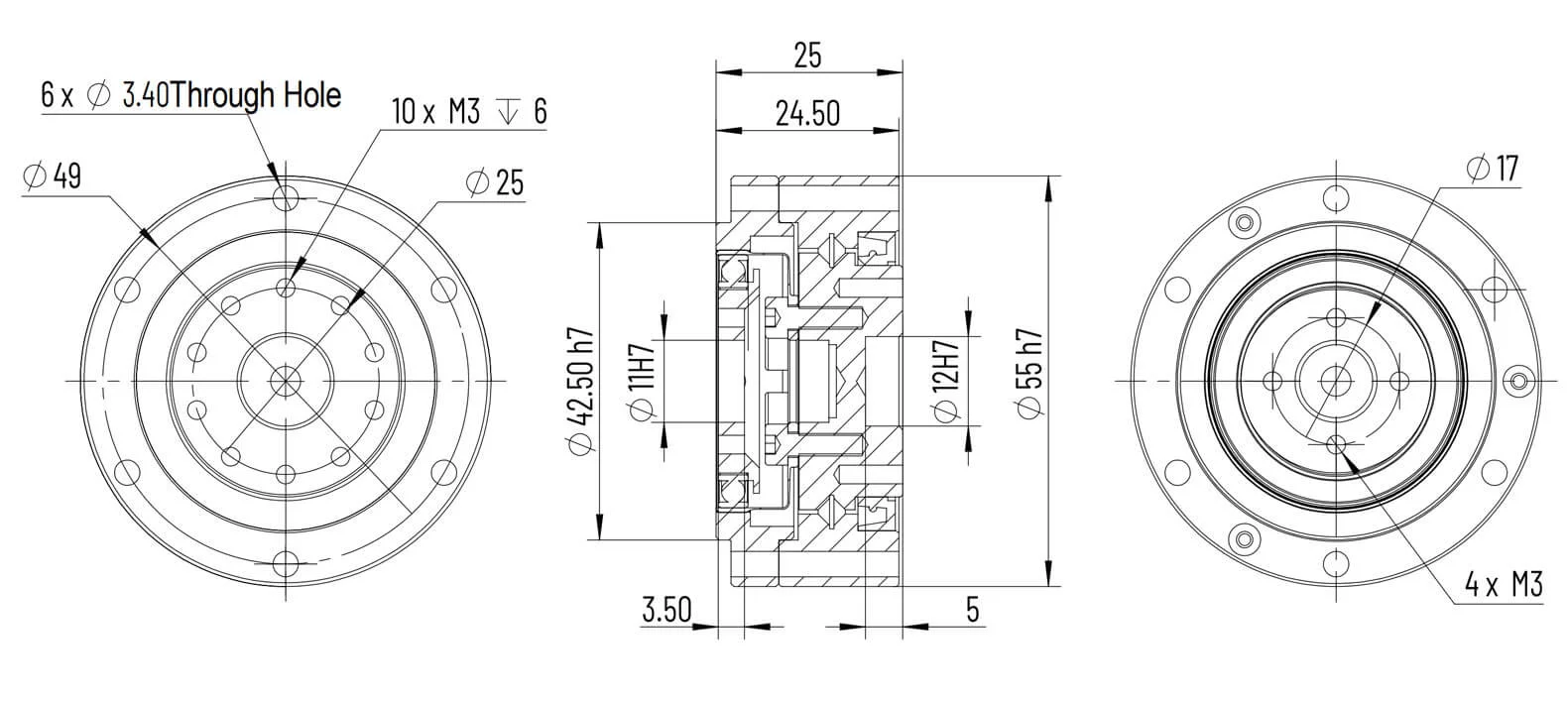

孔位安装平面图

单位 : mm

CD-14 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

2.2

3.7

5.4

起动停止时的容许峰值转矩 [ Nm ]

10.2

平均负载转矩的容许最大值 [ Nm ]

2.88

4.8

7.7

瞬间容许最大转矩 [ Nm ]

14.4

容许最高输入转速 [ rpm ]

8500

容许平均转速 [ rpm ]

3500

转动惯量 [ Ix10^-4 kgm^2 ]

0.021

背隙 [ Arcsec ]

≤20

≤10
