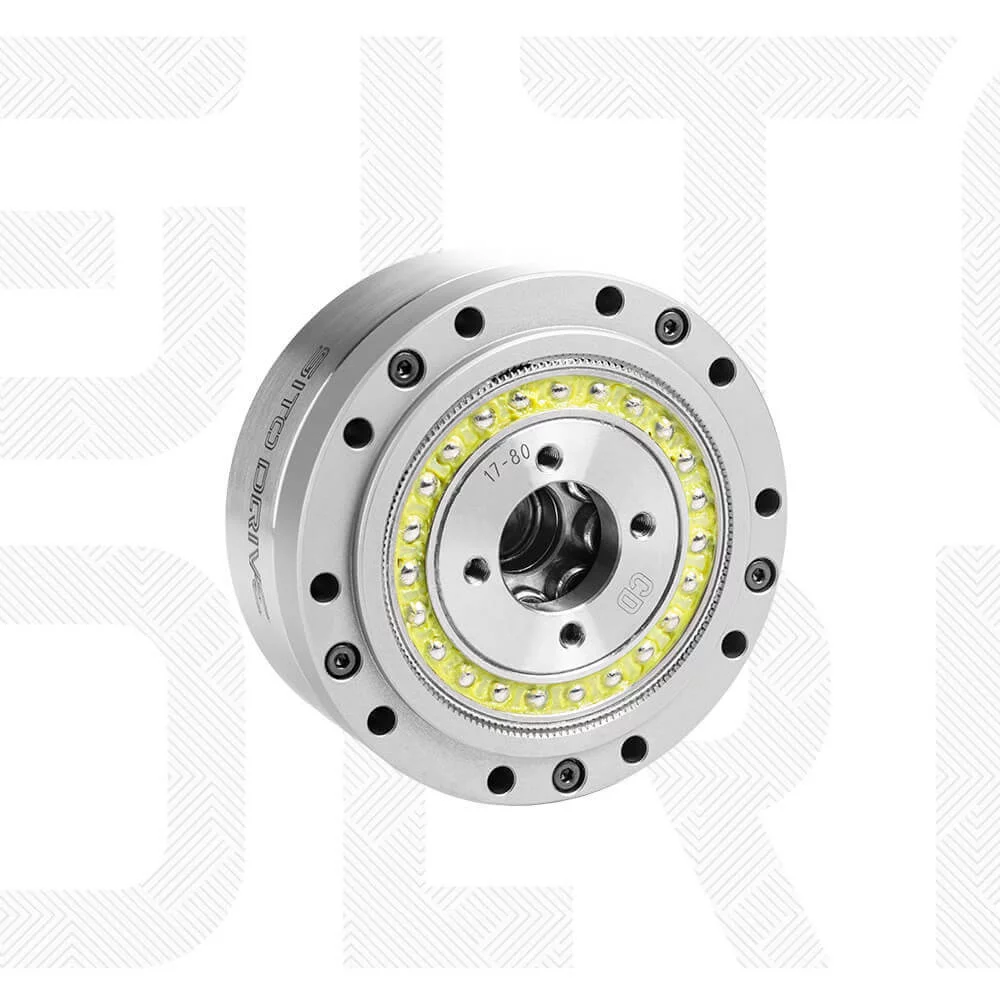

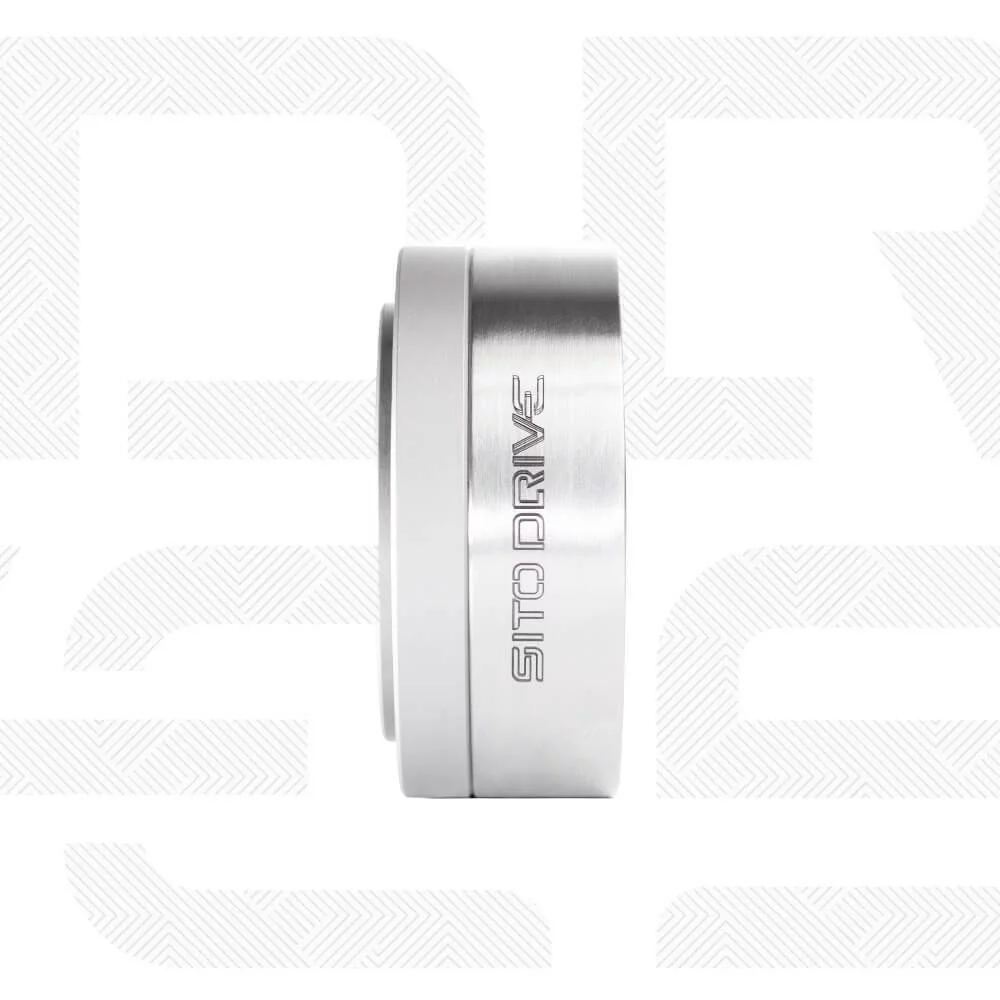

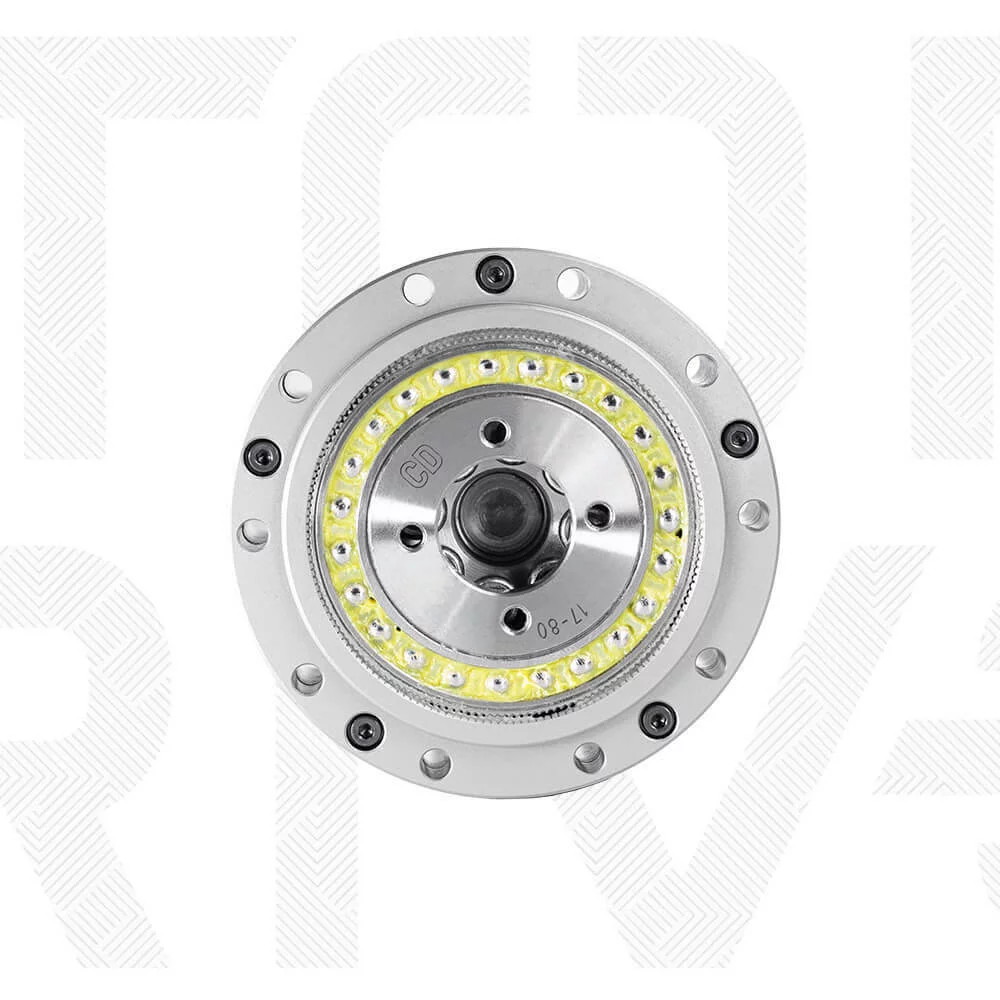

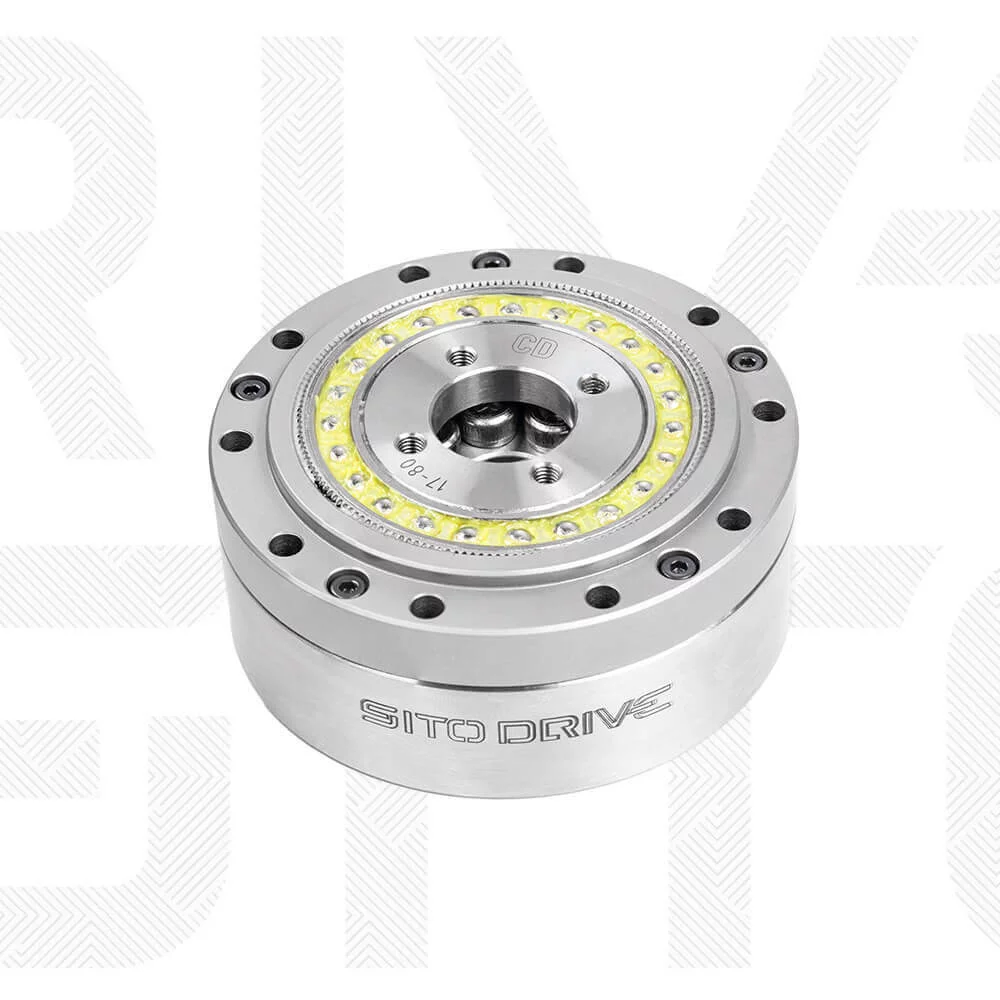

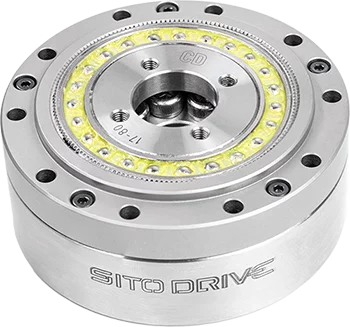

    Family SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer
    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer
    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer
    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer
    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer
    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer
    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer

    SitoDrive CD-17 62mm Reducer Harmonic Drive Reducer Gearbox for Robotics CNC, CSD-17-100-2UH Nema 24 Stepper motor reducer

    10% Cashback；Import charges included

    Amount:
    $0 $0
    • Speed Ratio
      50
      80
      100
    1
    Add to Cart
    Buy Now

    CD-17

    CD系列谐波减速器

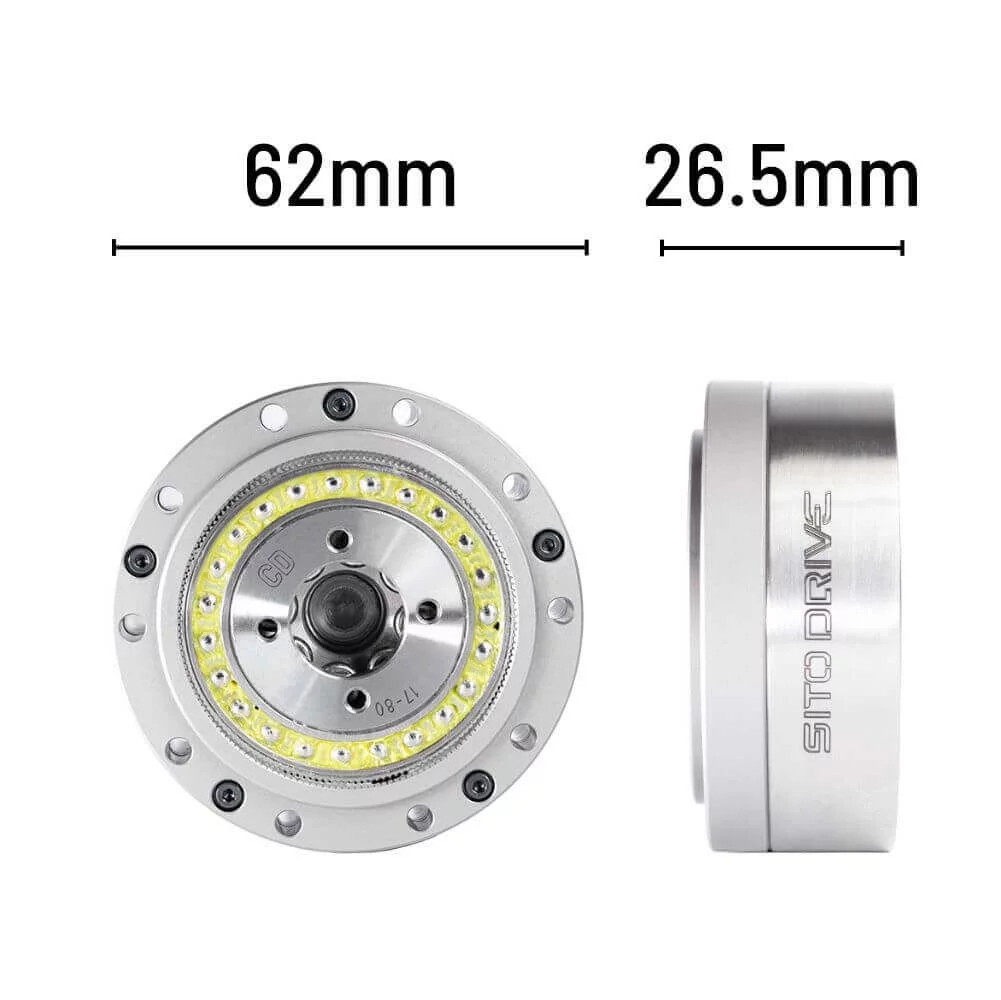

    直径 : 62 mm

    厚度 : 26.5 mm

    重量 : ≤ 0.421 kg

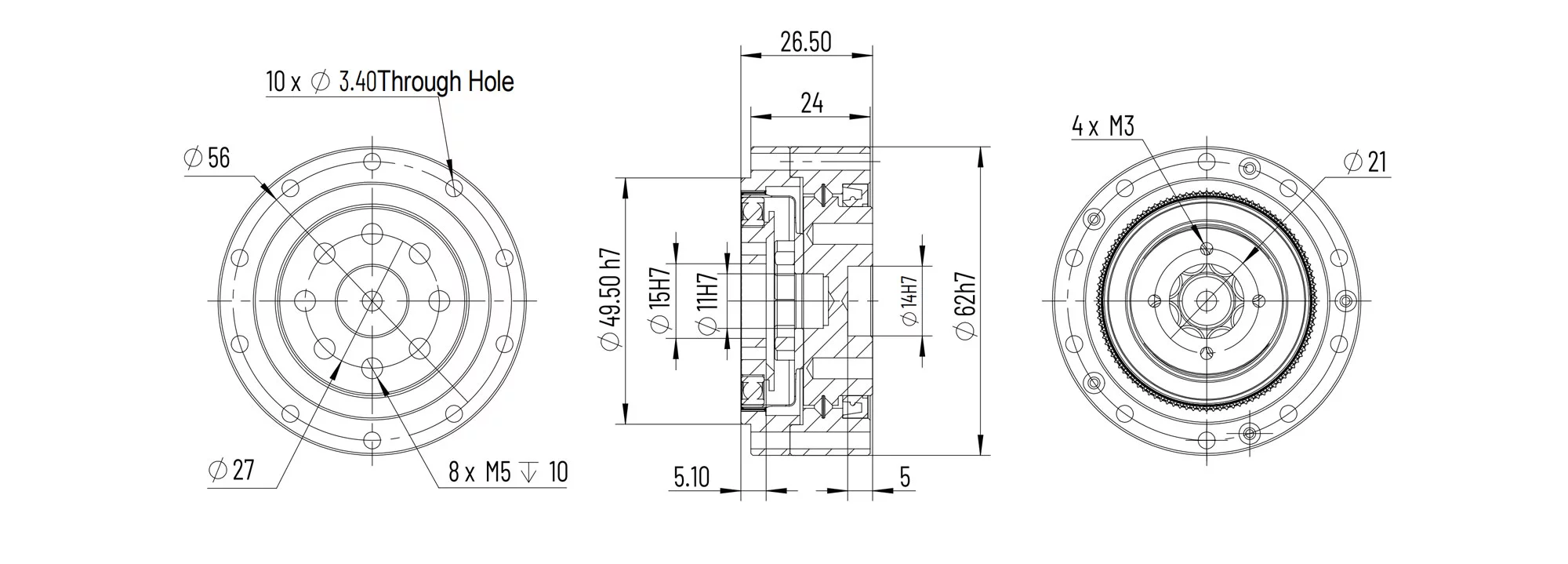

    孔位安装平面图

    单位 : mm

    CD-17 参数

    减速比

    30

    50

    80

    100

    120

    输入2000r/min时的额定转矩 [ Nm ]

    11

    15

    16

    起动停止时的容许峰值转矩 [ Nm ]

    23

    29

    37

    平均负载转矩的容许最大值 [ Nm ]

    18

    19

    27

    瞬间容许最大转矩 [ Nm ]

    48

    55

    55

    容许最高输入转速 [ rpm ]

    7300

    7300

    7300

    容许平均转速 [ rpm ]

    3500

    3500

    3500

    转动惯量 [ Ix10^-4 kgm^2 ]

    0.054

    0.054

    0.054

    背隙 [ Arcsec ]

    ≤20

    ≤10

    ≤10
