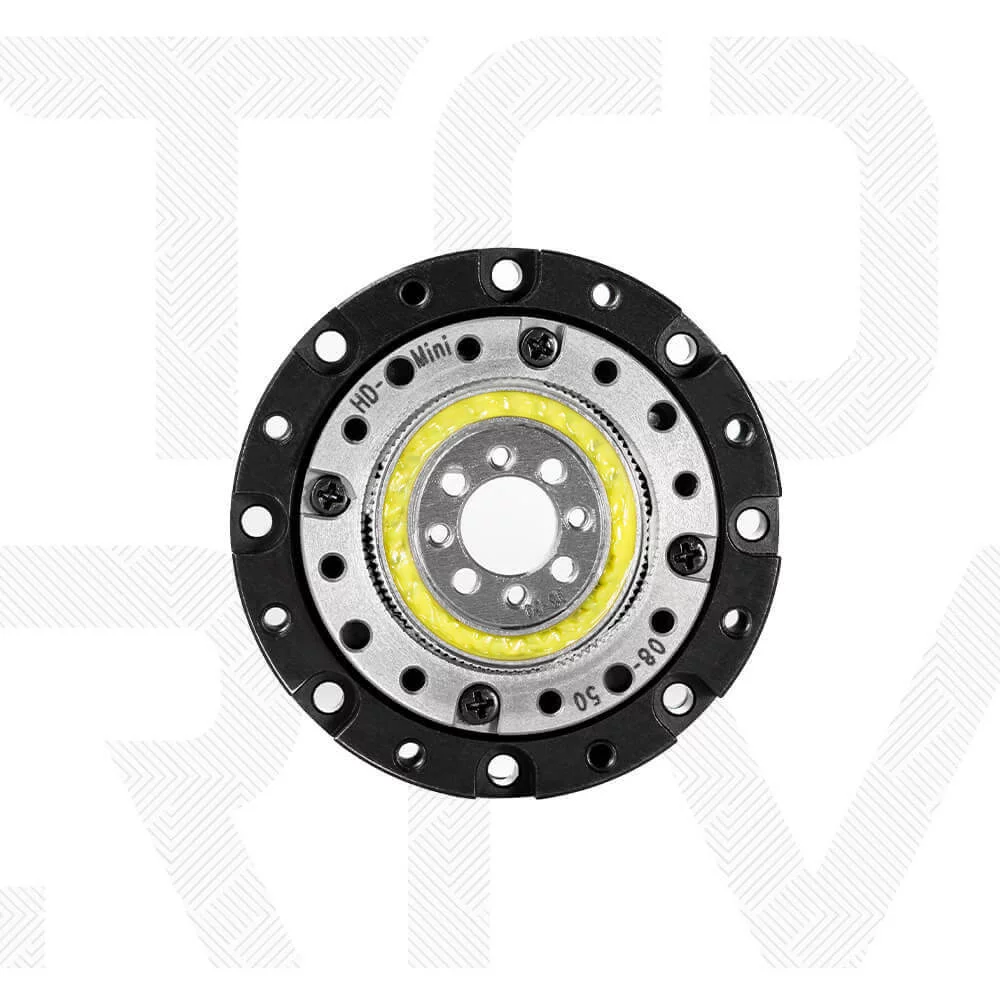

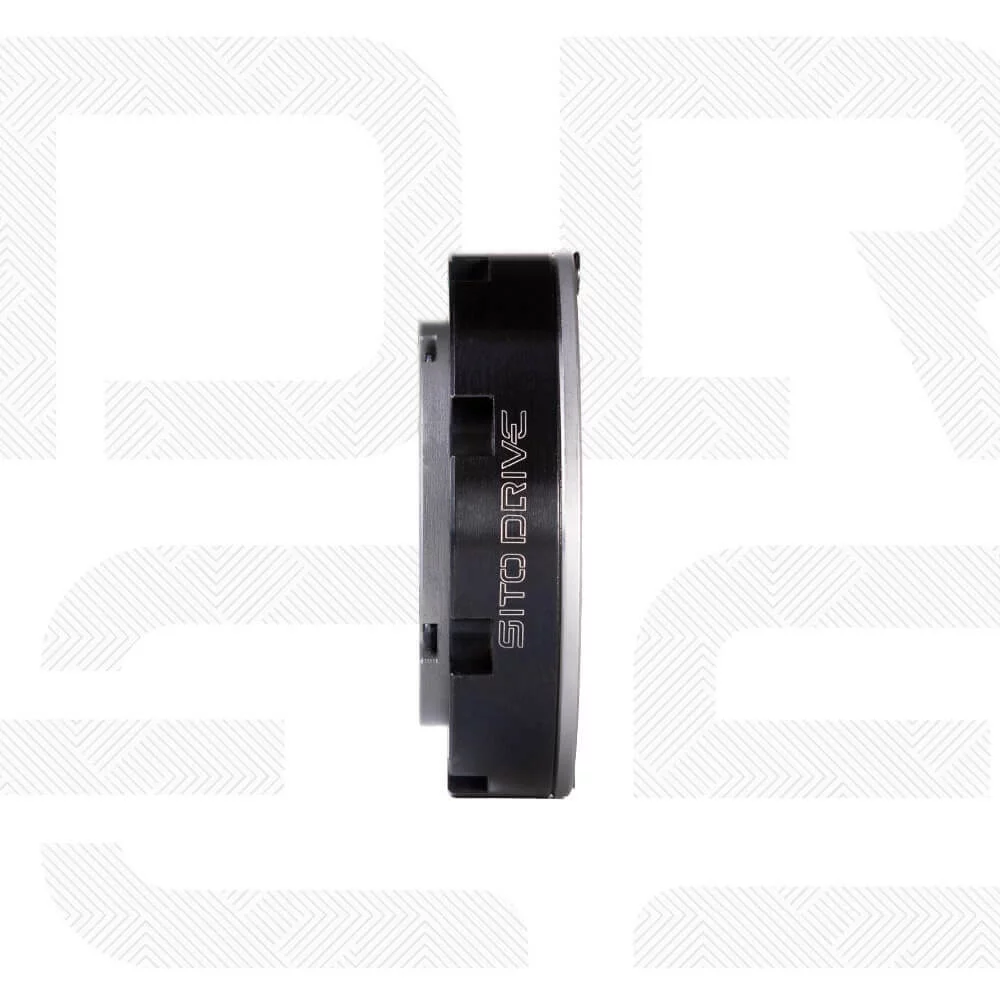

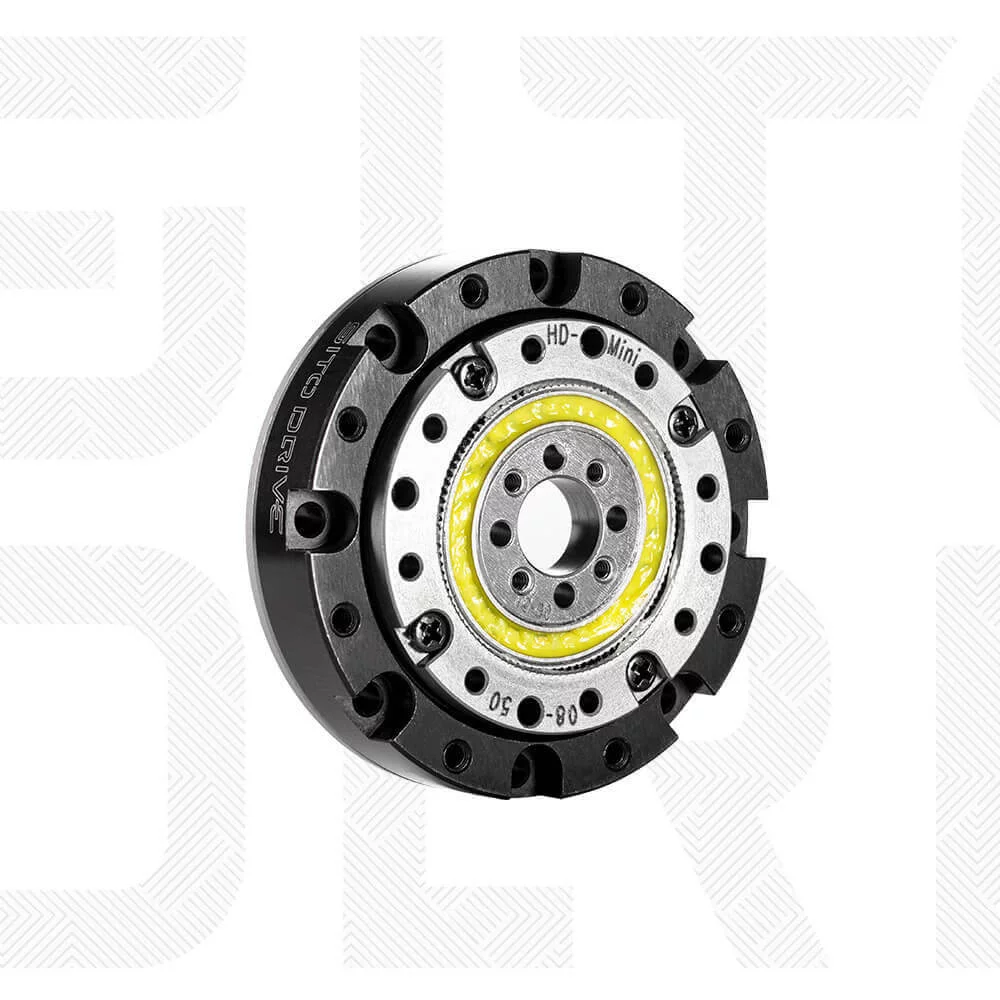

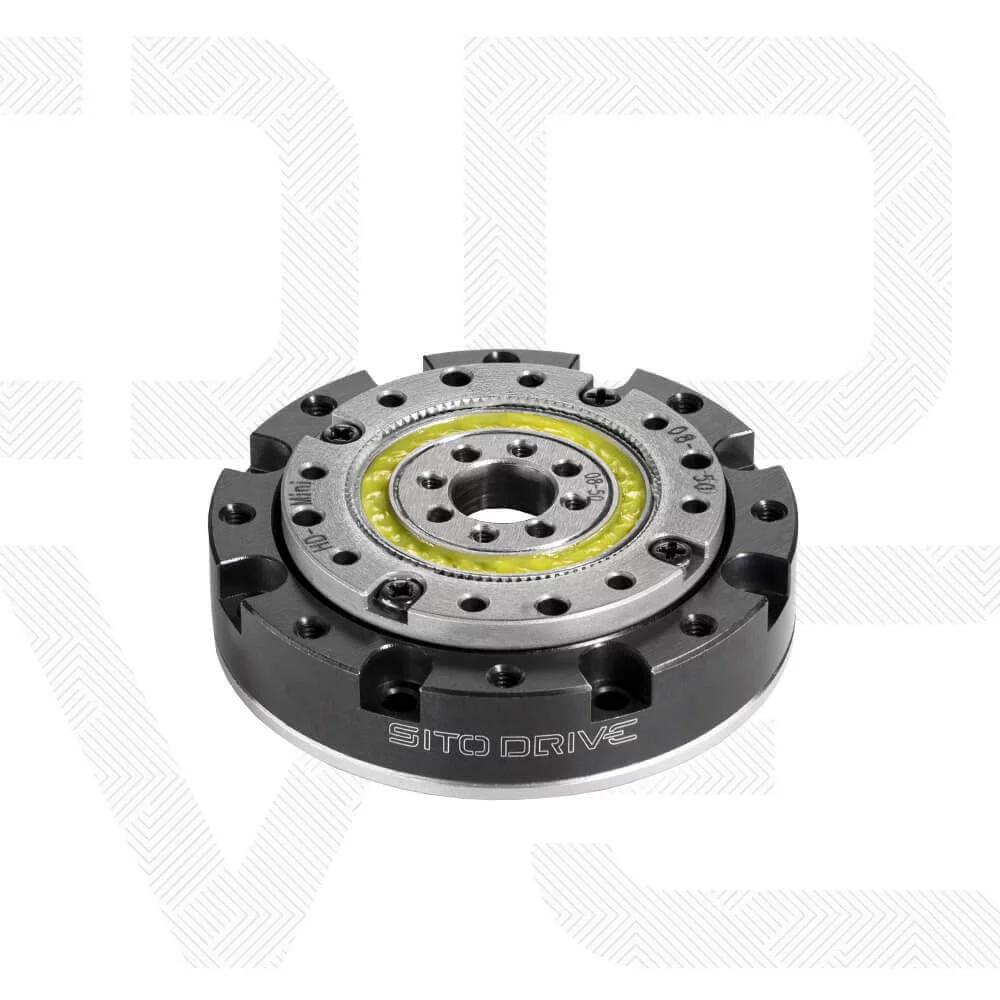

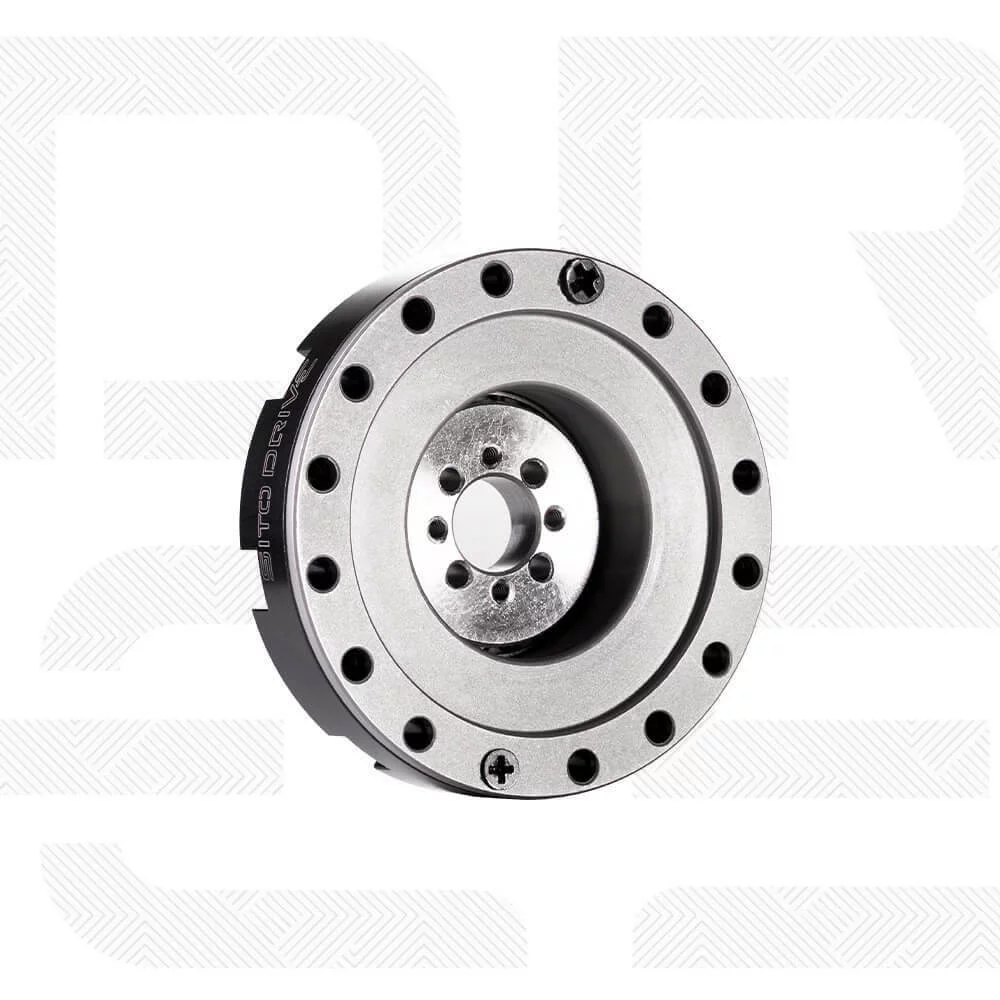

    Family SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics
    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics
    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics
    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics
    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics
    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics
    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics

    SitoDrive Harmonic Drive HD-08 Micro Harmonic Gearbox Nema 14 17 Motor 100:1 Reduction Ratio 40mm for Small Robotics

    10% Cashback；Import charges included

    Amount:
    $0 $0
    • Speed Ratio
      30
      50
      100
    1
    Add to Cart
    Buy Now

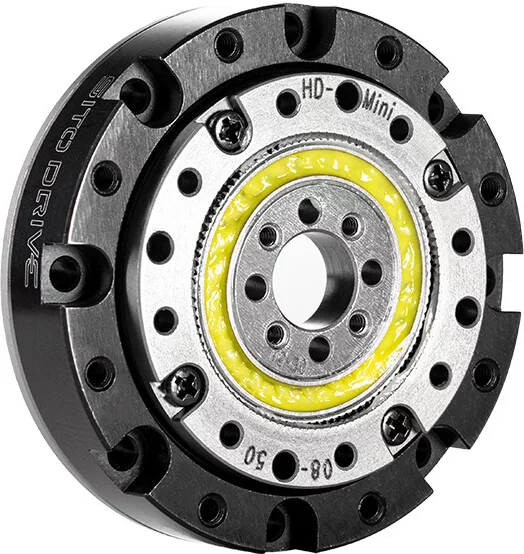

    HD Mini-08

    微小型谐波减速器

    直径 : 40 mm

    厚度 : 11.5 mm

    重量 : ≤0.061 kg

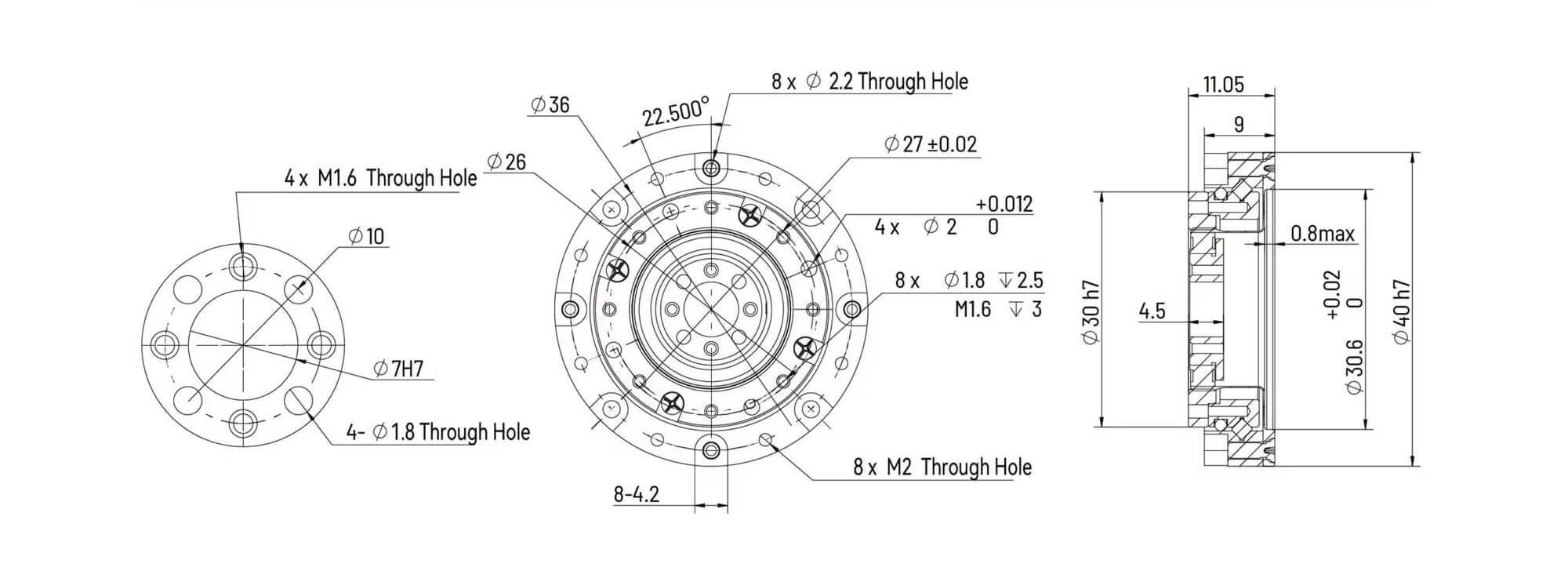

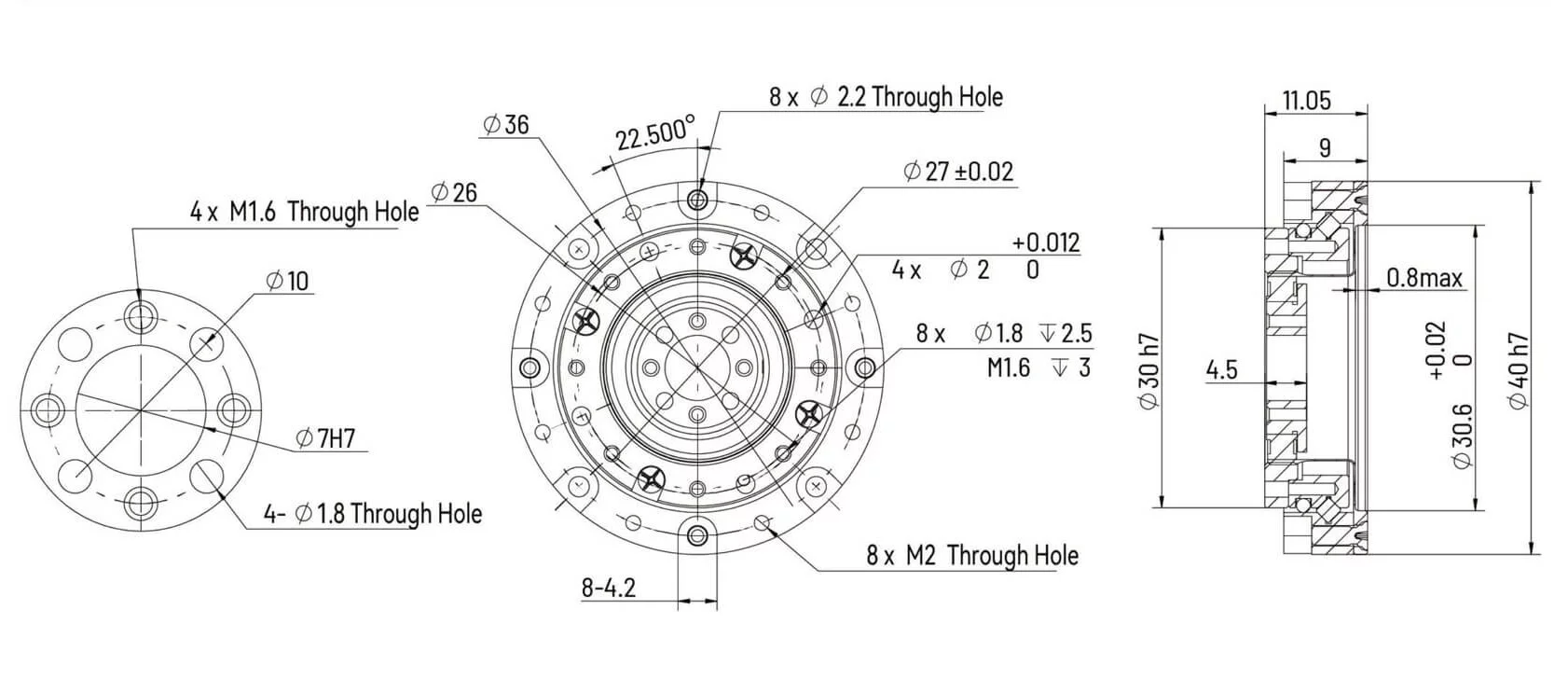

    孔位安装平面图

    单位 : mm

    HD mini-08 参数

    减速比

    30

    50

    80

    100

    120

    输入2000r/min时的额定转矩 [ Nm ]

    0.8

    1.6

    2.4

    起动停止时的容许峰值转矩 [ Nm ]

    1.6

    3.1

    4.6

    平均负载转矩的容许最大值 [ Nm ]

    1.3

    2.1

    3.2

    瞬间容许最大转矩 [ Nm ]

    3.2

    6.1

    8.7

    容许最高输入转速 [ rpm ]

    8500

    8500

    8500

    容许平均转速 [ rpm ]

    3500

    3500

    3500

    转动惯量 [ Ix10^-4 kgm^2 ]

    背隙 [ Arcsec ]

    ≤20

    ≤20

    ≤20
