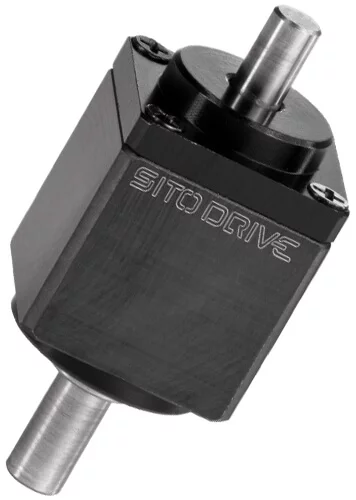

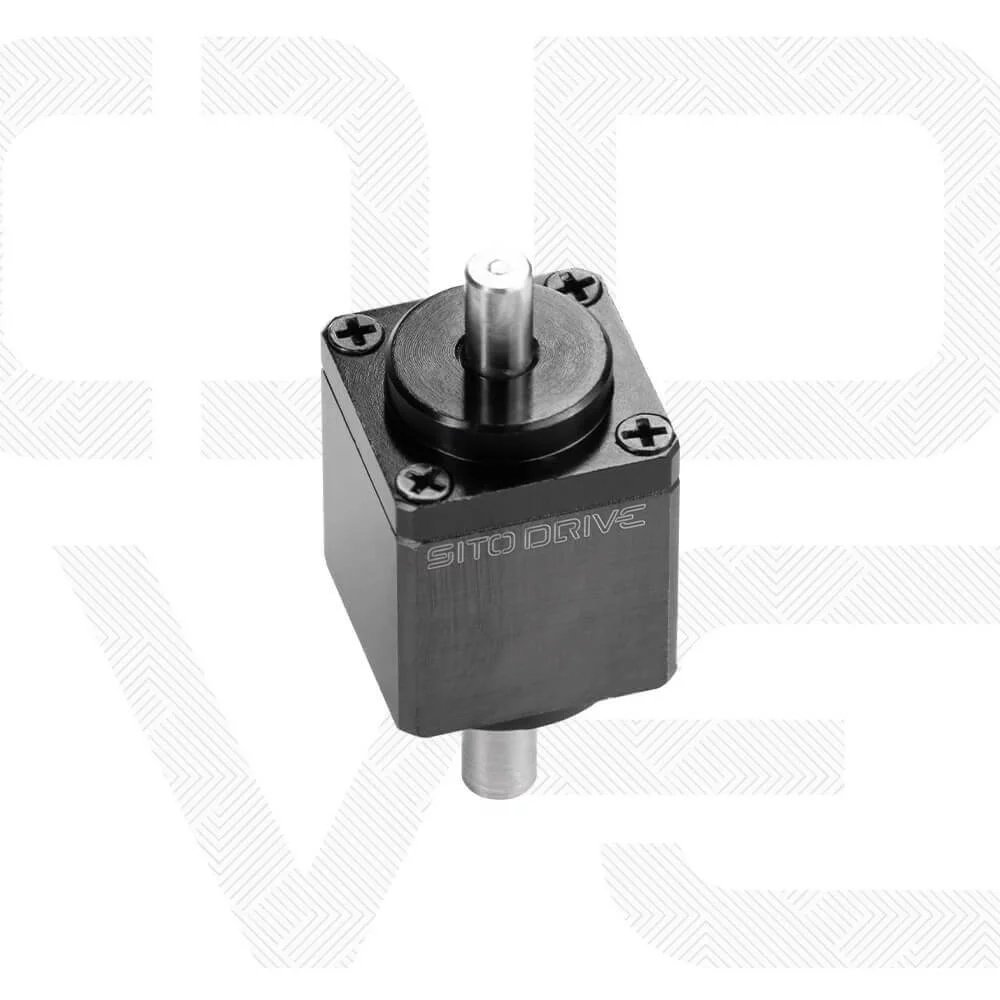

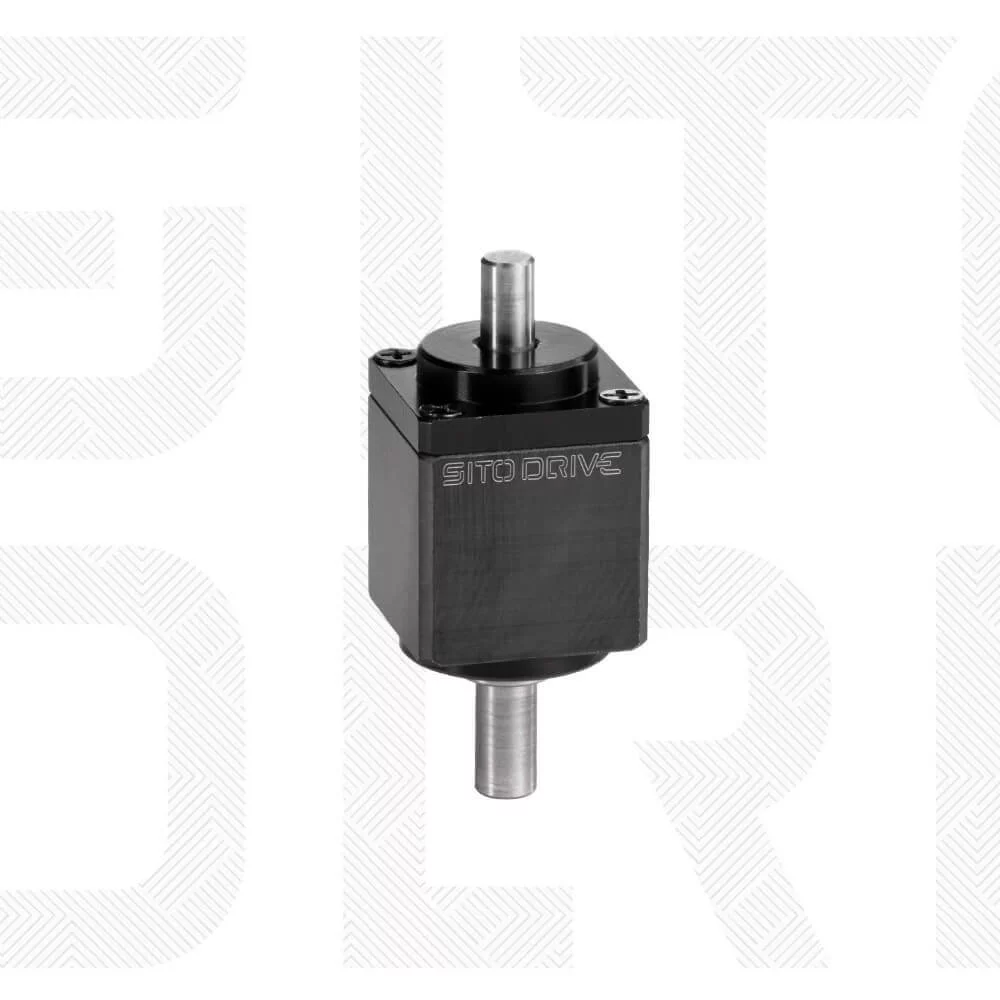

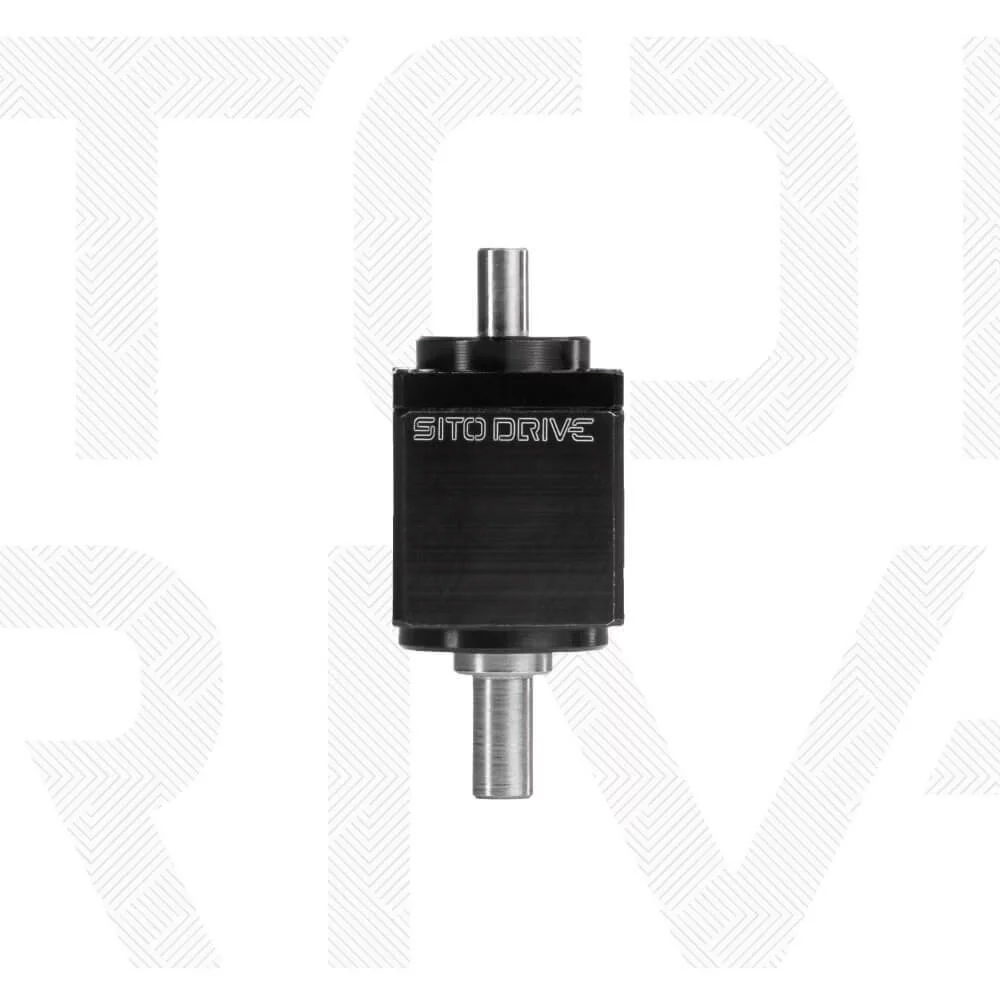

Family Sito SHD03 Micro Hollow Step-down Gearbox Nema 8 Servo Motor Speed Reducer 50:1 Industrial Harmonic Reducer 28mm Motorreducer

Sito SHD03 Micro Hollow Step-down Gearbox Nema 8 Servo Motor Speed Reducer 50:1 Industrial Harmonic Reducer 28mm Motorreducer

10% Cashback；Import charges included

Amount:

$0 $0

Speed Ratio

30

50

Add to Cart

Buy Now

CS Mini-03

CS系列微小型谐波减速器

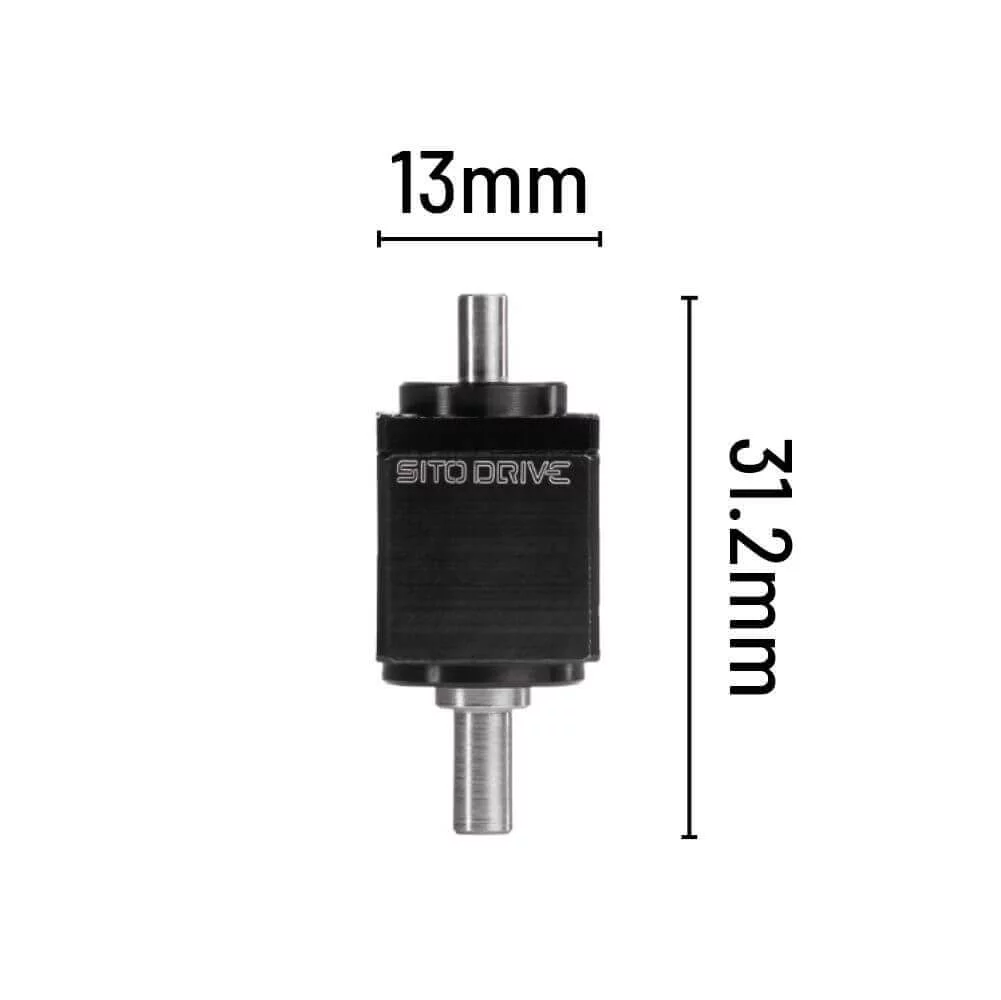

直径 : 13 mm

厚度 : 31.2 mm

重量 : ≤ 0.017 kg

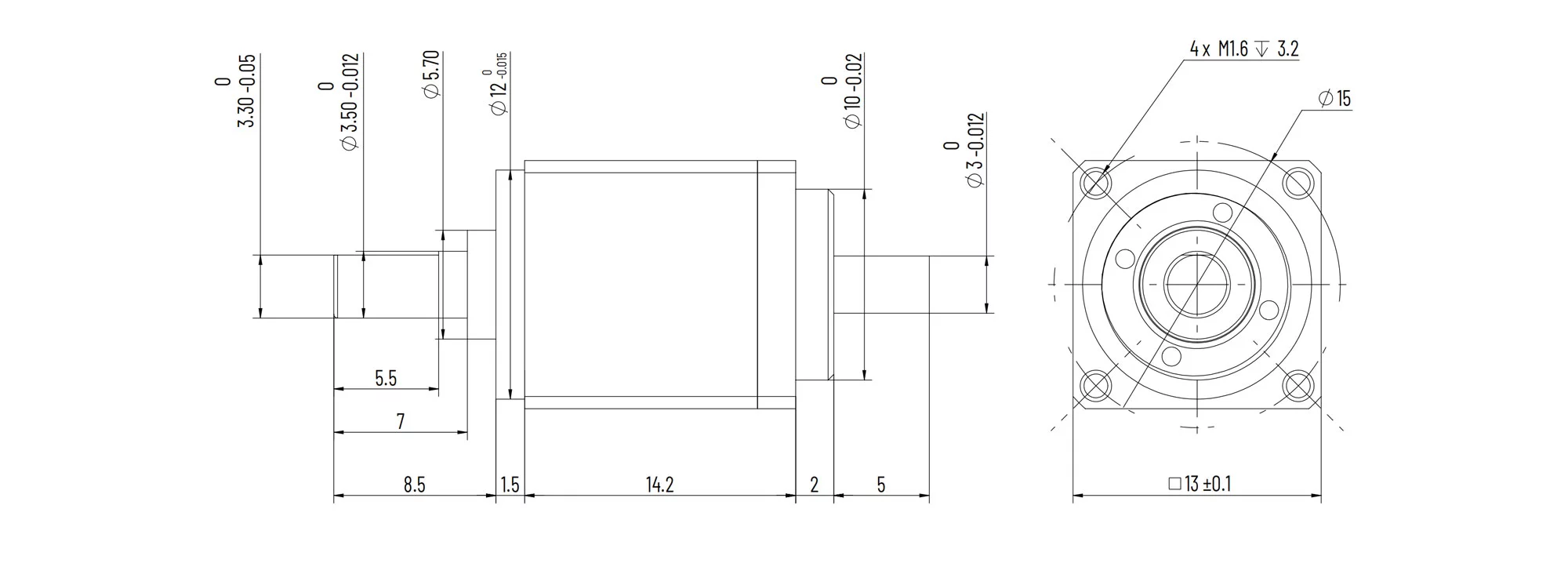

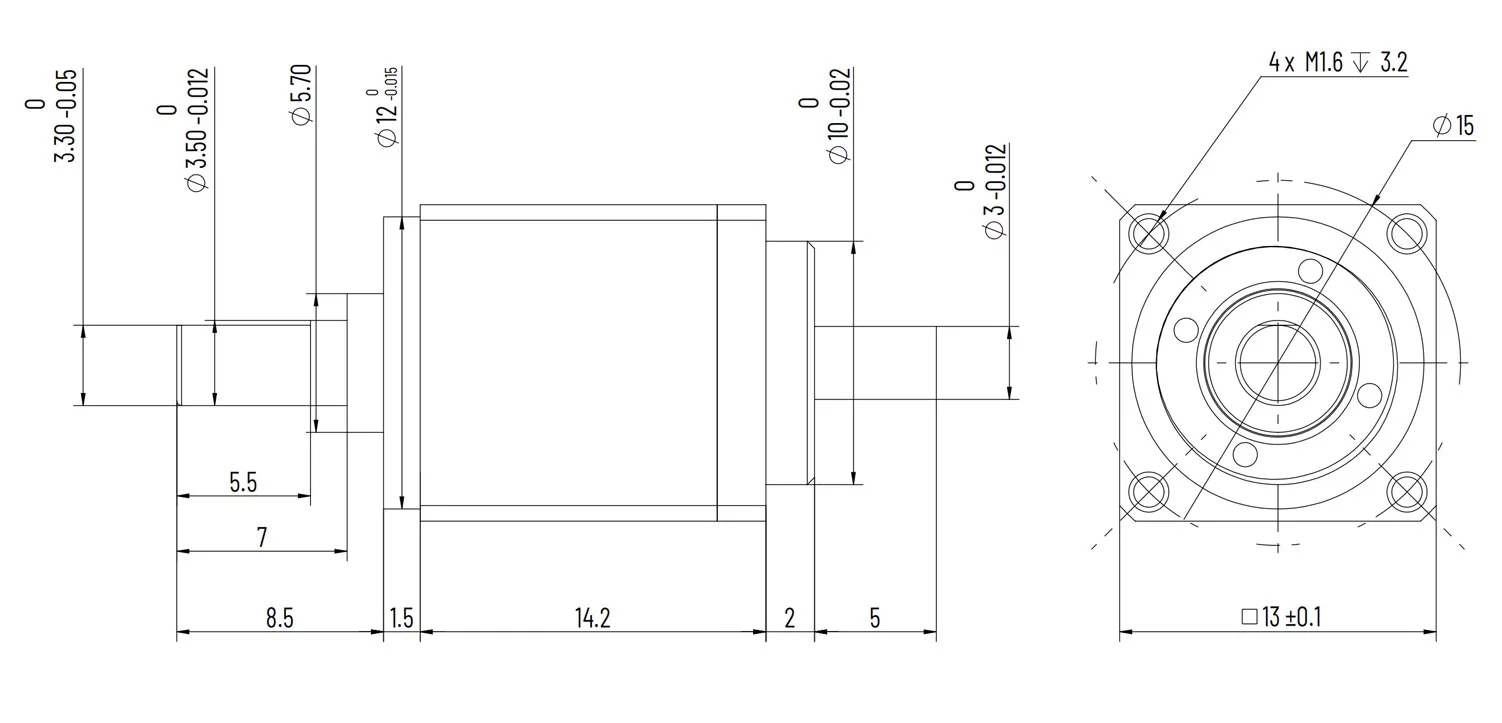

孔位安装平面图

单位 : mm

CS mini-03 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

0.06

0.11

起动停止时的容许峰值转矩 [ Nm ]

0.13

0.21

平均负载转矩的容许最大值 [ Nm ]

0.10

0.13

瞬间容许最大转矩 [ Nm ]

0.22

0.41

容许最高输入转速 [ rpm ]

10000

容许平均转速 [ rpm ]

6500

转动惯量 [ Ix10^-4 kgm^2 ]

背隙 [ Arcsec ]

≤20

TA-40

TA-52

TA-70

TA-80

HD Series

HD-Mini Series

HS Series

CS Series

CS-Mini Series

CD Series
