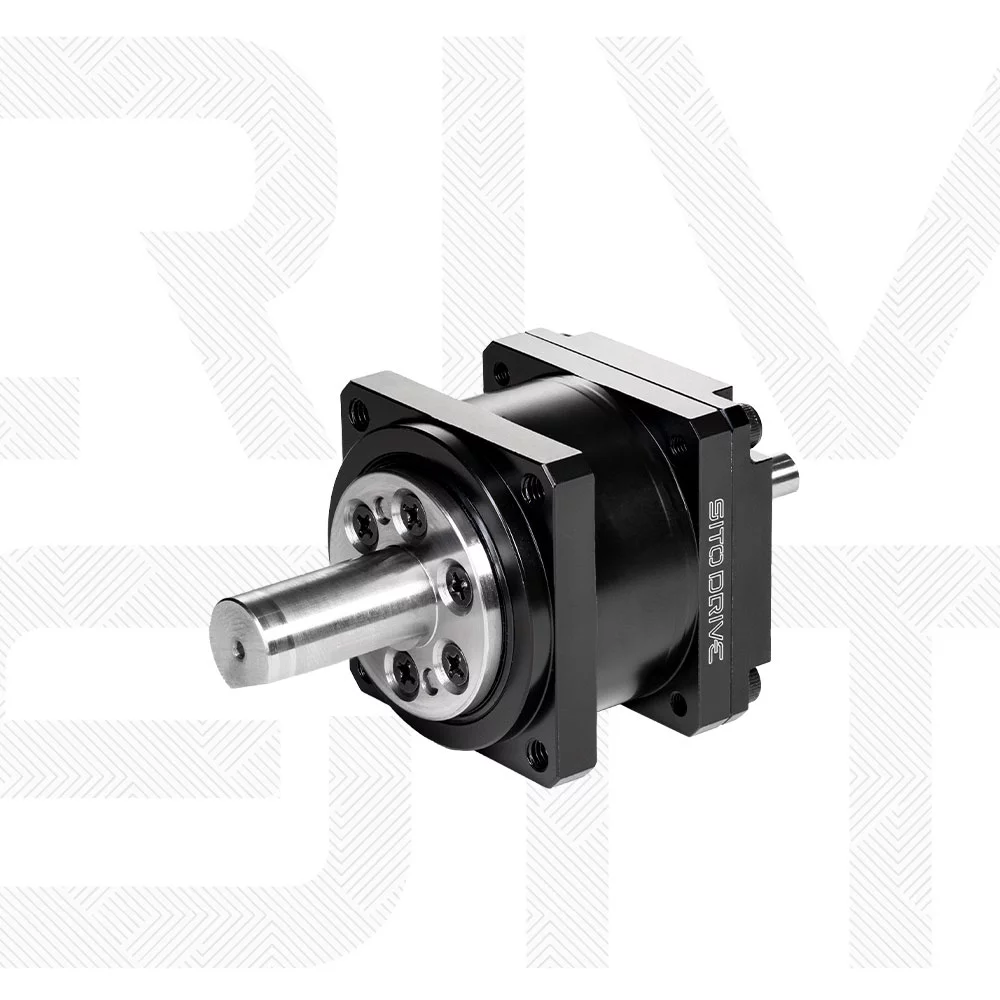

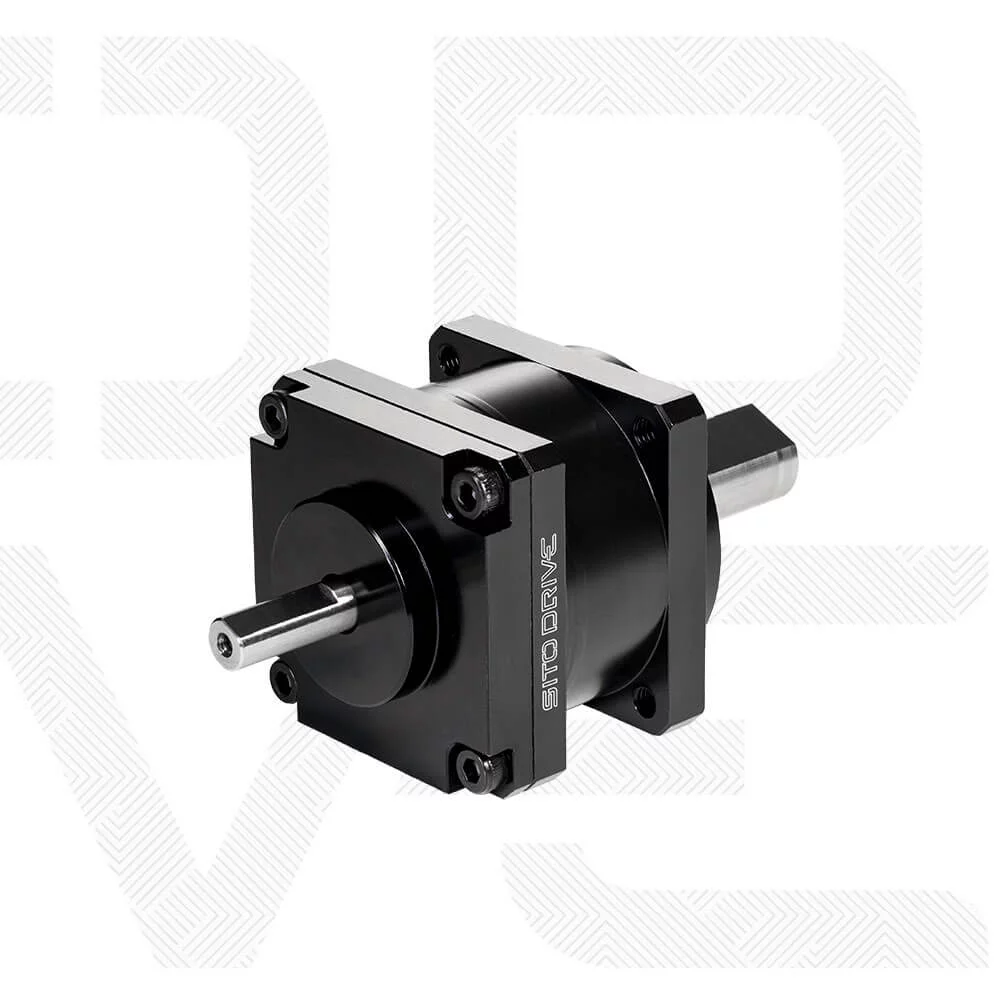

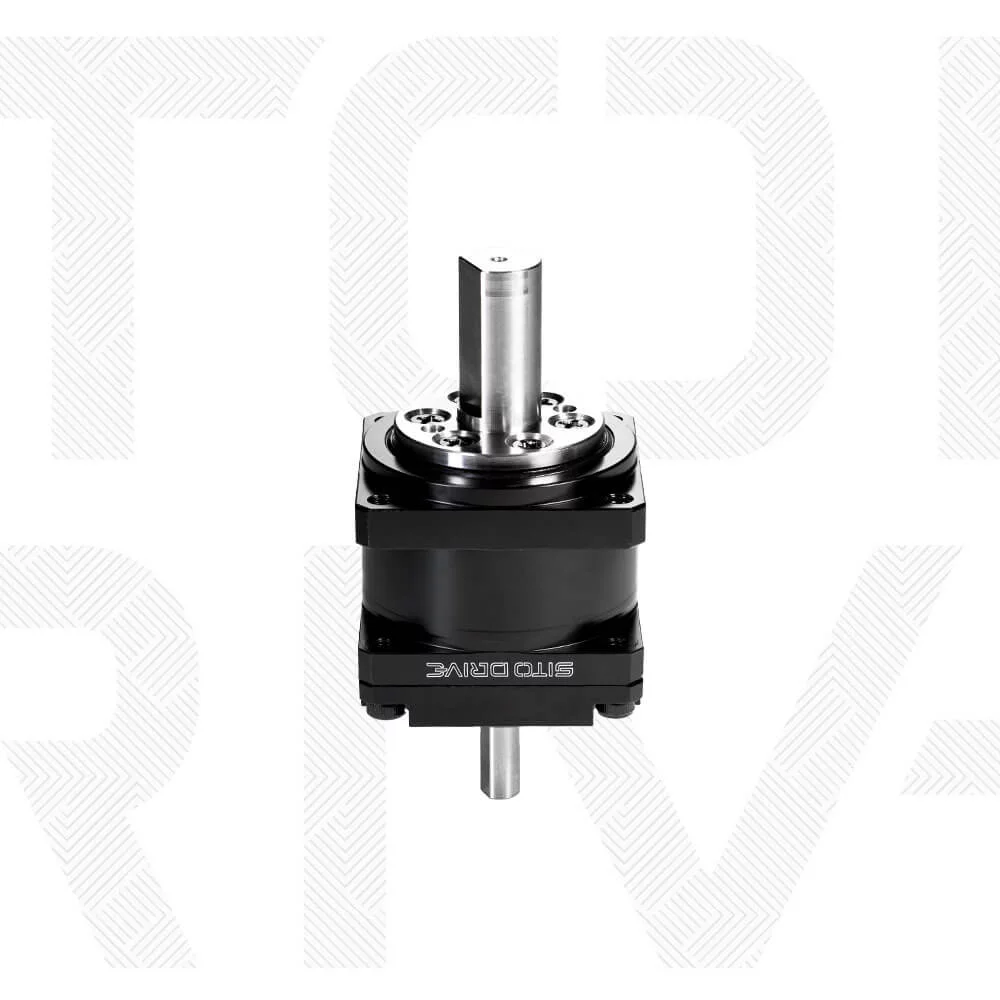

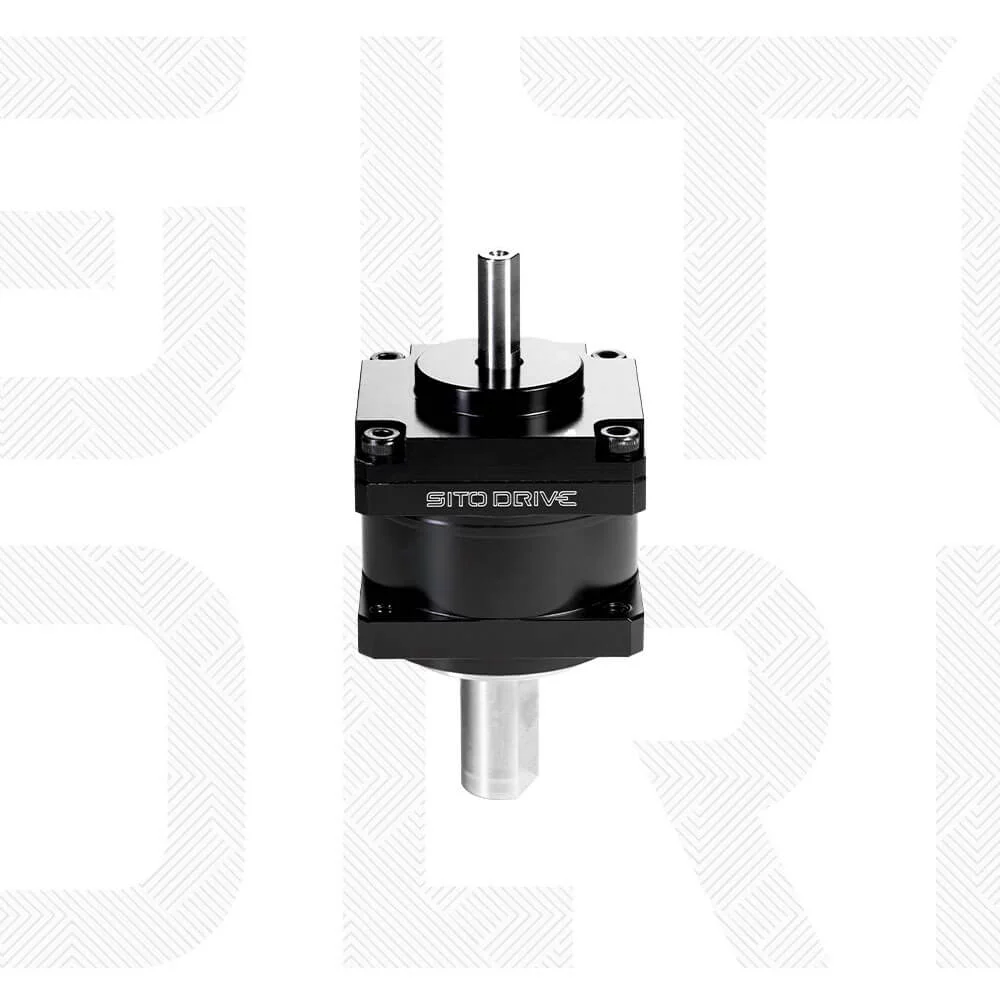

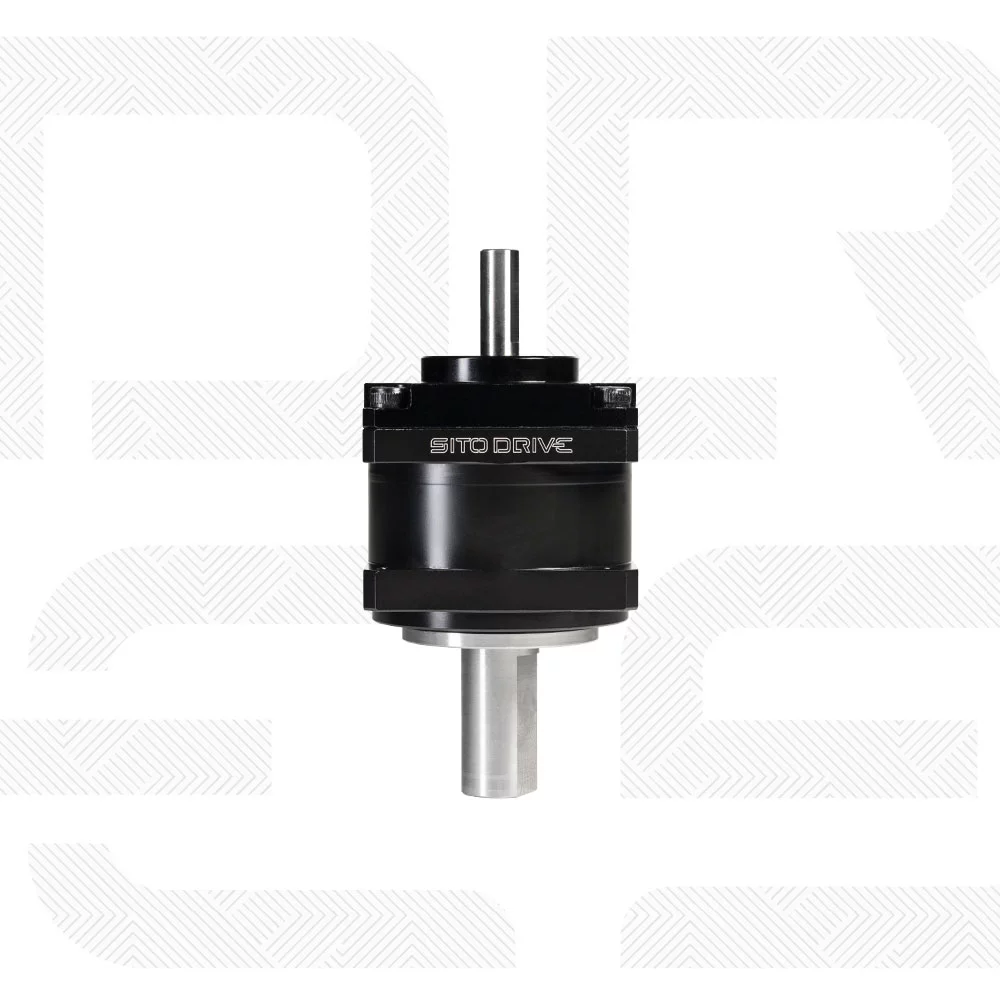

Family SitoDrive CS-11-1U-U 40mm Mini Harmonic Drive Nema 17 Servo Motor Compact Harmonic Gearbox CSF-11-1U for CNC & Rotary Actuator

SitoDrive CS-11-1U-U 40mm Mini Harmonic Drive Nema 17 Servo Motor Compact Harmonic Gearbox CSF-11-1U for CNC & Rotary Actuator

10% Cashback；Import charges included

Amount:

$0 $0

Speed Ratio

30

50

100

Add to Cart

Buy Now

CS Mini-11

CS系列微小型谐波减速器

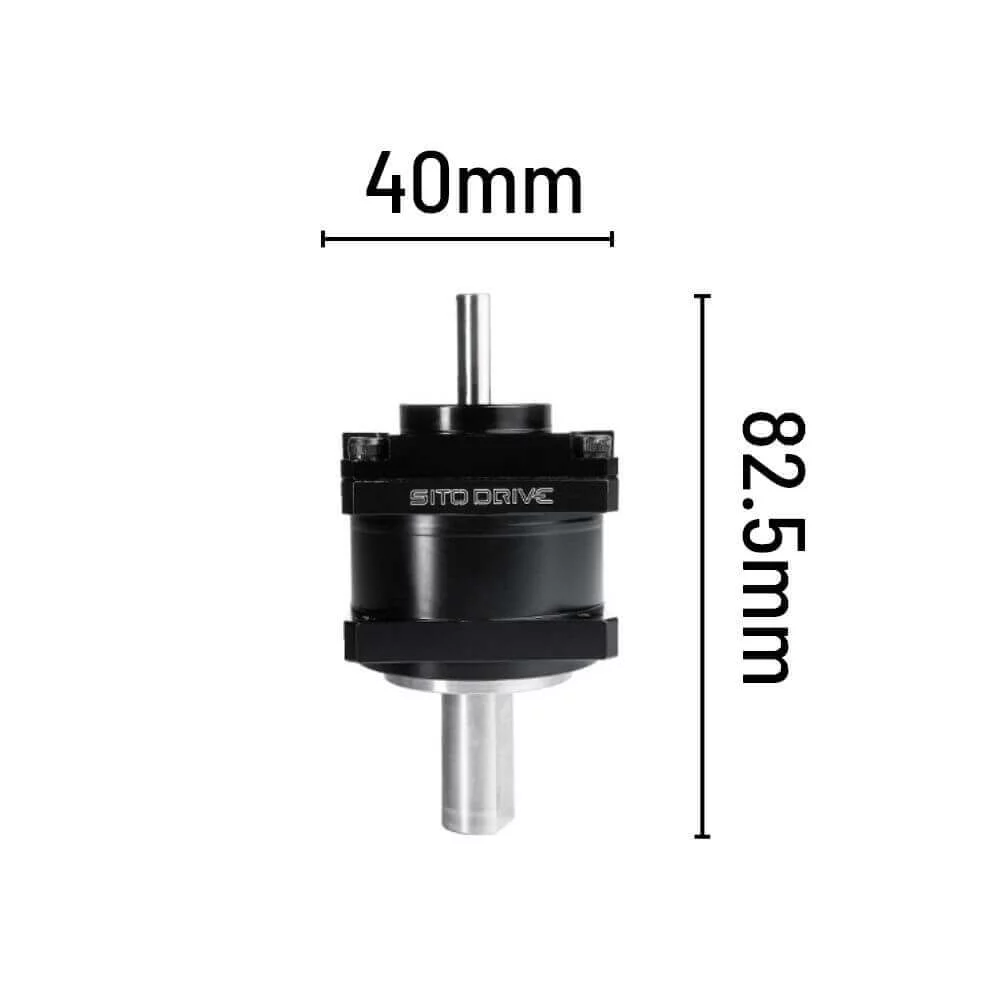

直径 : ≤ 43 mm

厚度 : ≤ 82.5 mm

重量 : ≤ 0.2 kg

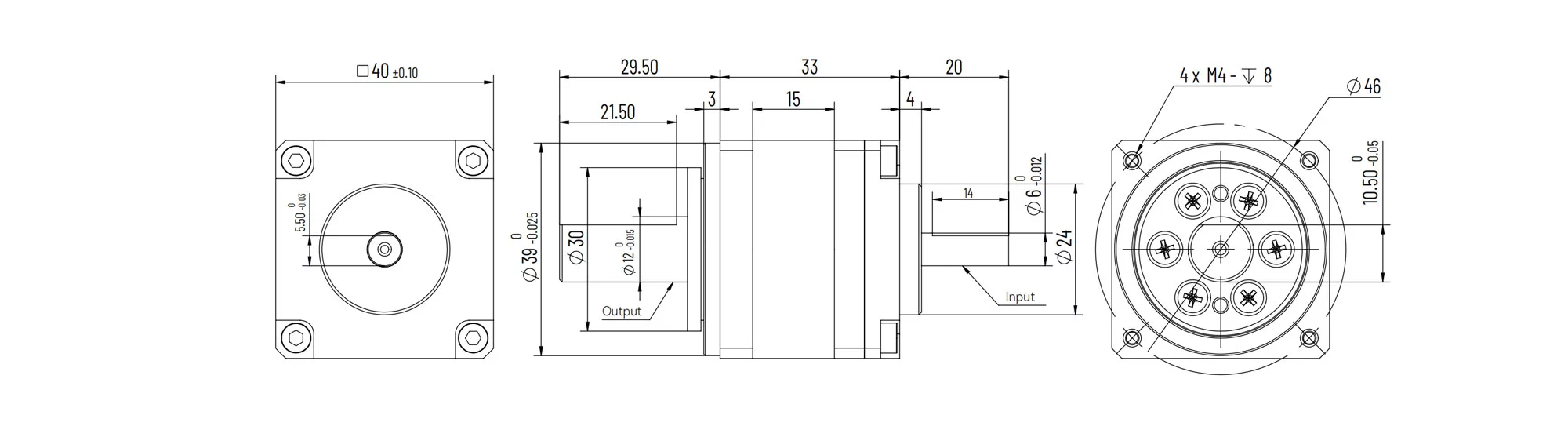

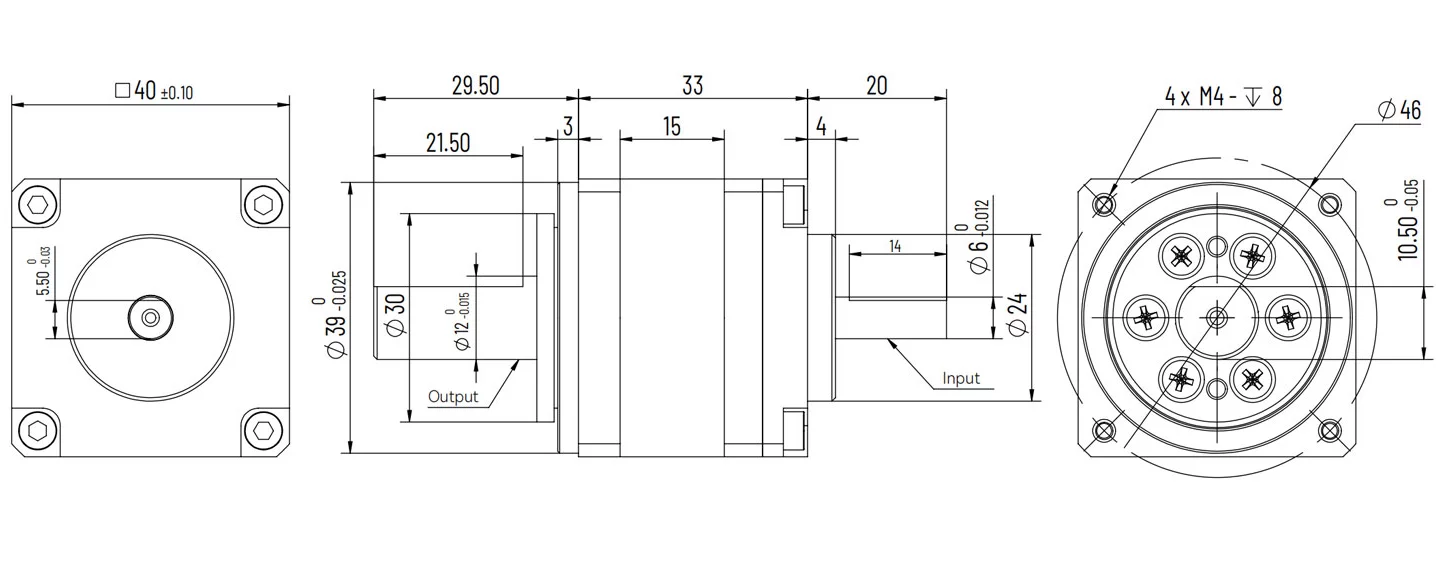

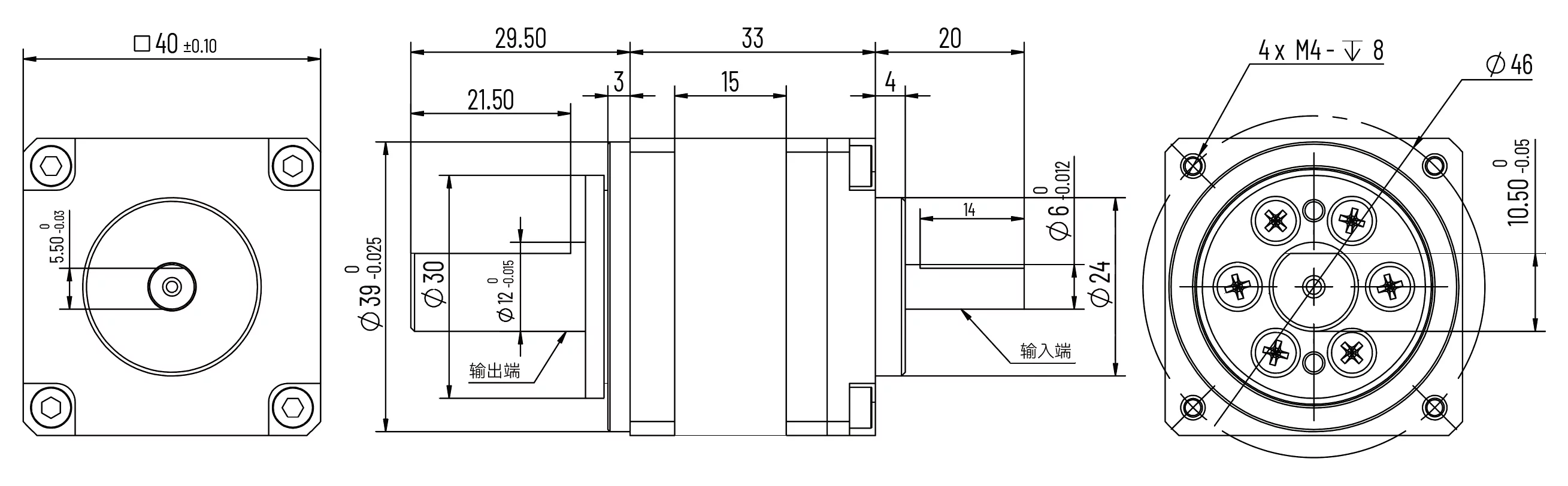

孔位安装平面图

单位 : mm

CS mini-11 参数

减速比

100

120

输入2000r/min时的额定转矩 [ Nm ]

2.2

3.5

起动停止时的容许峰值转矩 [ Nm ]

4.5

8.3

平均负载转矩的容许最大值 [ Nm ]

3.4

5.5

8.9

瞬间容许最大转矩 [ Nm ]

8.5

容许最高输入转速 [ rpm ]

8500

容许平均转速 [ rpm ]

3500

转动惯量 [ Ix10^-4 kgm^2 ]

1.4x10^-2

背隙 [ Arcsec ]

≤20
